- Personal key
The content area of the home screen represents a personal key. Each key has its own settings menu (2) and a dedicated button for manual door opening (3). In addition, each key contains information such as the key name (4), the status of the associated door/lock (5) and the activated door mode (6). - Key Settings and Lock Settings

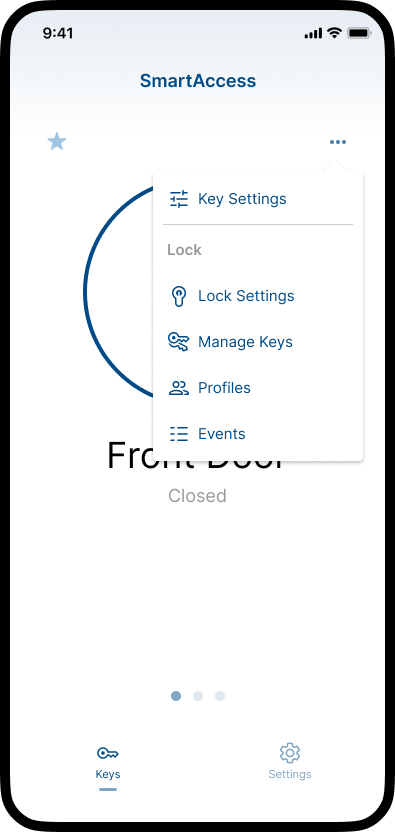

Users without administrator rights only have access to the personal Key Settings (
).
Administrators have access to the personal Key Settings, the Lock Settings and to the Manage Keys, Profiles and Events area (
). - Button to manually open the door
Depending on whether the lock can transmit status feedback or not, different icons are displayed.
Further information on the different icons can be found in the next chapter. - Name of the key
Usually, the name of the corresponding door is displayed here. The name of the key can be assigned individually in the My Key Settings area. - Status of the door/lock
Only displayed if lock can provide status feedback. - Current door mode
Only displayed if user has activated a Door Mode. - Swipe between personal keys
Only displayed if user has several keys. - Main menu
- Menu item: Keys (home screen)
Personal keys are displayed in the content area. - Menu item: Settings
Contains the App Settings.
Buttons to manually open the door

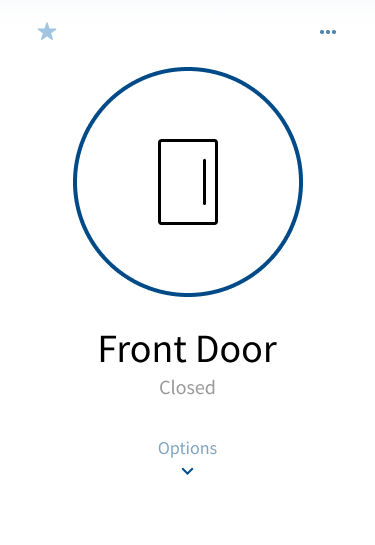

Depending on whether the lock can transmit status feedback or not, different icons are displayed on the home screen. For locks with feedback, the symbol also changes when the door is open or closed.
- Lock with status feedback
- Door is closed
- Door button clickable
(door opens) - No door mode activated
- Lock with status feedback
- Door is open
- Door button not clickable
(door is open) - Door mode activated
(Permanent Open Mode)
- Lock without status feedback
- Door is open or closed
- Door button always clickable
(since no status available) - Door modes not available
(SmartTouch devices cannot be installed)
